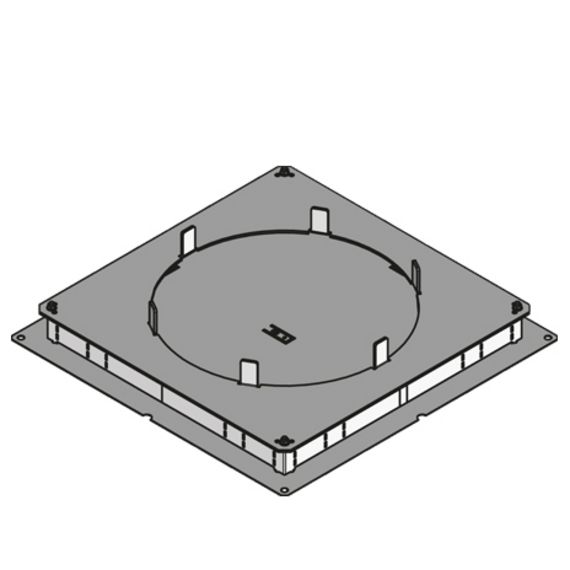

hollow space floor box consisting of a Sendzimir hot-dip galvanized sheet steel box with all-round bendable side walls including grounding clamp for a subsonic noise free and height independent assembly. Usable as pull- and installation box, with one opening for insertion of a shuttering tube that will be replaced with a round plastic or high-grade steel assembly unit during final assembly.
data sheet Assembly Instruction
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | HminMinimum installation height | width | width | length 1 | length 2 | E fitting dimension | mounting box Maximum number of installable device casings. | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UBDHB350 28-308R | 31 mm | 67 mm | 410 mm | 450 mm | 410 mm | 450 mm | 310 mm | triple | 3,4 kg | ||
| UBDHB350 38-308R | 41 mm | 77 mm | 410 mm | 450 mm | 410 mm | 450 mm | 310 mm | triple | 3,5 kg | ||
| UBDHB350 48-308R | 51 mm | 87 mm | 410 mm | 450 mm | 410 mm | 450 mm | 310 mm | triple | 3,6 kg |
Underfloor systems
Floor trunking systems
Hollow space floor box - Floor trunking systems
Assembly requirements
Hollow space floor box, round
