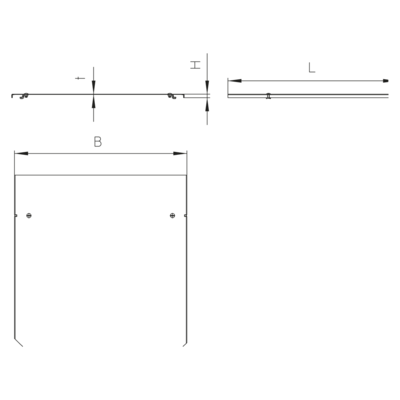

Cover for wide-span cable ladders. With additional turning bolts.
data sheet
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| WLDR 20S | 237 mm | 3000 mm | 0,75 mm | 4,68 kg | |
| WLDR 30S | 337 mm | 3000 mm | 1,00 mm | 8,55 kg | |
| WLDR 40S | 437 mm | 3000 mm | 1,00 mm | 10,91 kg | |
| WLDR 50S | 537 mm | 3000 mm | 1,25 mm | 16,55 kg | |
| WLDR 60S | 637 mm | 3000 mm | 1,25 mm | 19,49 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| WLDR 20F | 237 mm | 3000 mm | 0,75 mm | 5,00 kg | |
| WLDR 30F | 337 mm | 3000 mm | 1,00 mm | 9,15 kg | |
| WLDR 40F | 437 mm | 3000 mm | 1,00 mm | 11,67 kg | |
| WLDR 50F | 537 mm | 3000 mm | 1,25 mm | 17,71 kg | |
| WLDR 60F | 637 mm | 3000 mm | 1,25 mm | 20,85 kg |
