RG 60 cable tray, perforated, height = 60 mm

cable tray perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

data sheet Assembly Instruction

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RG 60-05S	60 mm	50 mm	3000 mm	0,75 mm	27 cm²	0,04 kN/m	3,40 kg
RG 60-10S	60 mm	100 mm	3000 mm	0,75 mm	57 cm²	0,09 kN/m	4,30 kg
RG 60-20S	60 mm	200 mm	3000 mm	0,75 mm	117 cm²	0,18 kN/m	5,80 kg
RG 60-30S	60 mm	300 mm	3000 mm	0,75 mm	177 cm²	0,27 kN/m	7,40 kg
RG 60-40S	60 mm	400 mm	3000 mm	0,88 mm	237 cm²	0,36 kN/m	10,60 kg
RG 60-50S	60 mm	500 mm	3000 mm	1,00 mm	297 cm²	0,45 kN/m	14,20 kg
RG 60-60S	60 mm	600 mm	3000 mm	1,00 mm	357 cm²	0,54 kN/m	16,40 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RG 60-05F	60 mm	50 mm	3000 mm	0,75 mm	27 cm²	0,04 kN/m	3,80 kg
RG 60-10F	60 mm	100 mm	3000 mm	0,75 mm	57 cm²	0,09 kN/m	4,80 kg
RG 60-20F	60 mm	200 mm	3000 mm	0,75 mm	117 cm²	0,18 kN/m	6,50 kg
RG 60-30F	60 mm	300 mm	3000 mm	0,75 mm	177 cm²	0,27 kN/m	8,30 kg
RG 60-40F	60 mm	400 mm	3000 mm	0,88 mm	237 cm²	0,36 kN/m	11,70 kg
RG 60-50F	60 mm	500 mm	3000 mm	1,00 mm	297 cm²	0,45 kN/m	15,70 kg
RG 60-60F	60 mm	600 mm	3000 mm	1,00 mm	357 cm²	0,54 kN/m	18,10 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RG 60-05E	60 mm	50 mm	3000 mm	0,80 mm	27 cm²	0,04 kN/m	3,60 kg
RG 60-10E	60 mm	100 mm	3000 mm	0,80 mm	57 cm²	0,09 kN/m	4,60 kg
RG 60-20E	60 mm	200 mm	3000 mm	0,80 mm	117 cm²	0,18 kN/m	6,20 kg
RG 60-30E	60 mm	300 mm	3000 mm	0,80 mm	177 cm²	0,27 kN/m	8,00 kg
RG 60-40E	60 mm	400 mm	3000 mm	0,80 mm	237 cm²	0,36 kN/m	9,90 kg
RG 60-50E	60 mm	500 mm	3000 mm	1,00 mm	297 cm²	0,45 kN/m	14,30 kg
RG 60-60E	60 mm	600 mm	3000 mm	1,00 mm	357 cm²	0,54 kN/m	16,60 kg

Load Diagram

Details / Applications

Accessories

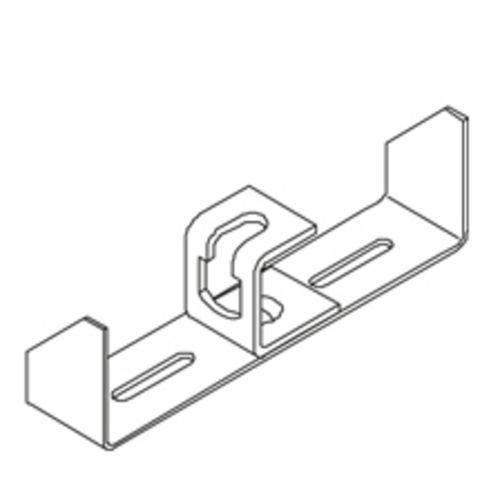

MA 60

centre suspension, internal

RB 60

cable tray bend, height = 60 mm

RB45 60

cable tray bend, height = 60 mm

RBV 60

cable tray bend, variable, height = 60 mm

RAE 60

cable tray attachment corner, height = 60 mm

RAA 60

cable tray attachment branch, height = 60 mm

RA 60

cable tray branch, height = 60 mm

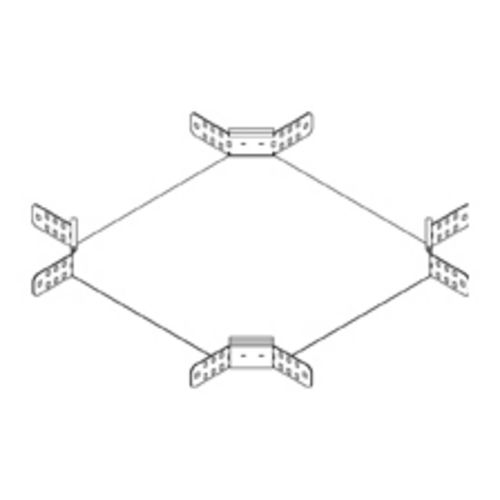

RK 60

cable tray crossover, height = 60 mm

RVB 60

cable tray vertical bend, height = 60 mm

RR 60

cable tray reducer, height = 60 mm

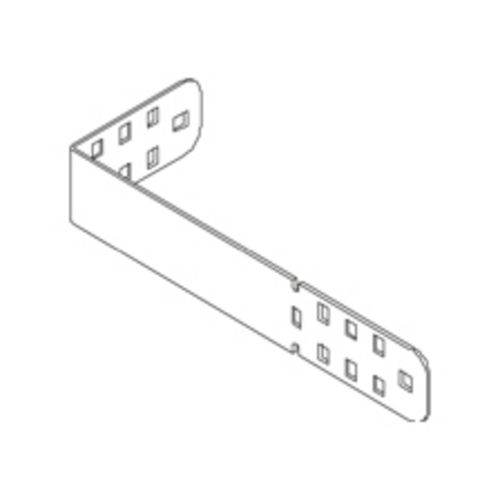

RAB 60

cable tray closing panel, height = 45 mm

REB

cable tray end-plate

RGV 60

cable tray side connector, height = 45 mm

RGVS 60

cable tray side snap connector, height = 60 mm

connection plate

RTR 60

cable tray separating strip, height = 50 mm

cable tray cover with turning bolts
