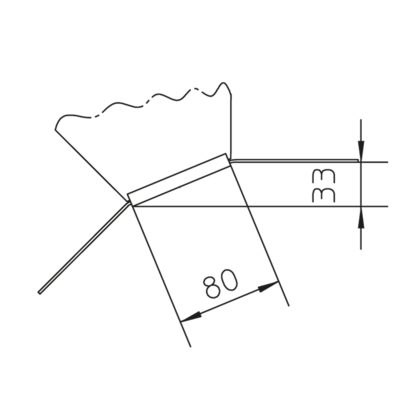

cable tray bend 45º, for horizontal change of direction, with integrated connectors
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
data sheet Assembly Instruction
UL classified
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | width | weight | |||
|---|---|---|---|---|---|
| RB45 110-10S | 110 mm | 100 mm | 1,37 kg | ||
| RB45 110-20S | 110 mm | 200 mm | 1,58 kg | ||
| RB45 110-30S | 110 mm | 300 mm | 2,26 kg | ||
| RB45 110-40S | 110 mm | 400 mm | 2,74 kg | ||
| RB45 110-50S | 110 mm | 500 mm | 3,32 kg | ||
| RB45 110-60S | 110 mm | 600 mm | 3,96 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| height | width | weight | |||
|---|---|---|---|---|---|
| RB45 110-10F | 110 mm | 100 mm | 1,47 kg | ||
| RB45 110-20F | 110 mm | 200 mm | 1,92 kg | ||
| RB45 110-30F | 110 mm | 300 mm | 2,44 kg | ||
| RB45 110-40F | 110 mm | 400 mm | 2,94 kg | ||
| RB45 110-50F | 110 mm | 500 mm | 3,56 kg | ||
| RB45 110-60F | 110 mm | 600 mm | 4,24 kg |
