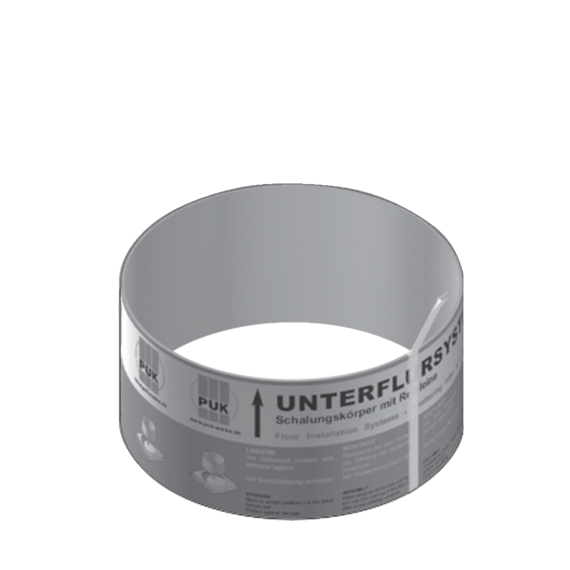

USR products are formwork pipes used in the installation of screed-covered underfloor duct systems. They are inserted into the UBDHB false floor sockets or UKDA assembly covers as lost formwork, where they form a fixed unit with the floor sockets. The pipes are removed again after the screed has hardened using an integrated ripcord. They are made of plastic-coated cardboard and have VDE/TÜV approval. They are available in heights of 150 and 225 mm and diameters of 260 and 308 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products

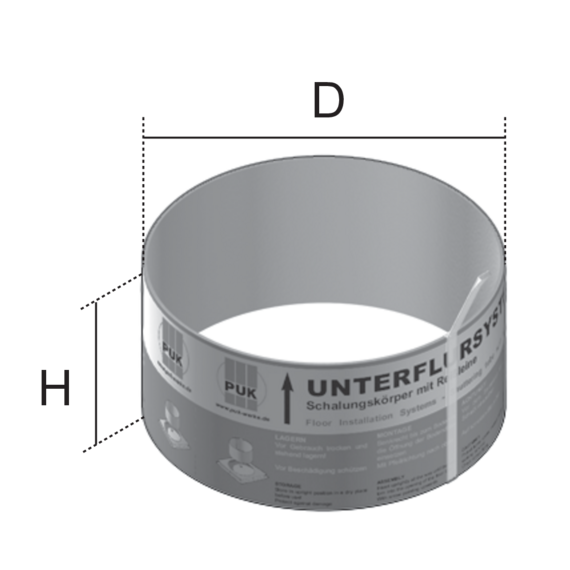

| Products | H height | D diameter | W Weight per storage unit | bookmark |
|---|---|---|---|---|
| USR 259-150 | 150 mm | 260 mm | 0,434 kg | |
| USR 308-150 | 150 mm | 308 mm | 0,470 kg | |
| USR 308-225 | 225 mm | 308 mm | 0,670 kg |
