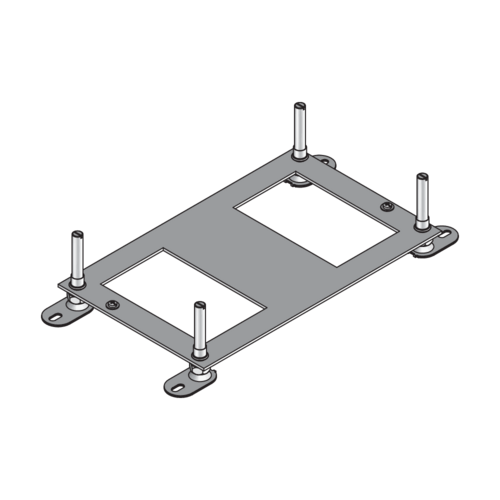

UKE185 V are hinged cover compact single outlets consisting of a floor socket, a height-adjustable single outlet and a formwork body. The square components are inserted directly into the screed and are used to accommodate up to eight installation devices. In addition, M25 pipes can be routed through the perforated side walls of the floor socket. The outlets are made of stainless steel (V2A) and are suitable for use in dry-cleaned and damp-cleaned rooms with office traffic loads. They are available with installation dimensions of 190 x 264 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Floor maintenance: Moist
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products
| Products | H height | Hmin minimum installation height | B width | L length | N levelling range | Pmax maximum load | E fitting dimension | IPg IP protection level in used condition | IPn IP protection level in unused condition | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UKE185 15-V E | 19 mm | 90 mm | 185 mm | 258 mm | 35 mm | 2,00 kN | 190 x 264 mm | IP 20 | IP 30 | 3,273 kg | |
| UKE185 25-V E | 29 mm | 100 mm | 185 mm | 258 mm | 35 mm | 2,00 kN | 190 x 264 mm | IP 20 | IP 30 | 3,646 kg |
