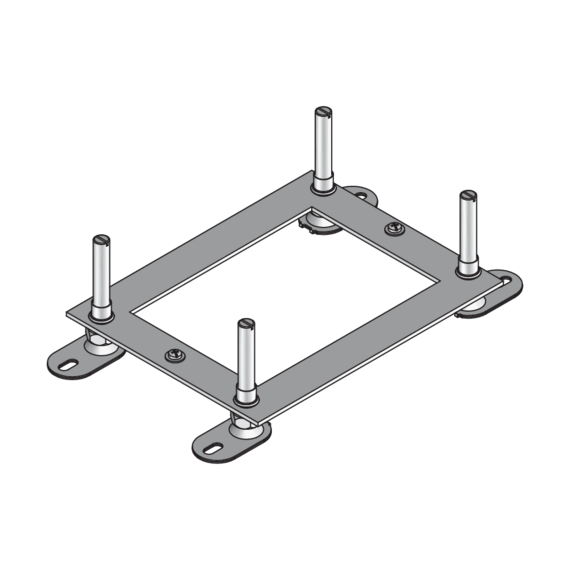

UKENP 160 components are levelling plates from the underfloor systems product range. These accessories are used for additional height adjustment of compact single outlets. The outlets are positioned flush with the finished floor on the levelling plates during installation. Using four levelling screws, its height can be flexibly adapted to the respective installation situation within a range of 25 - 70 mm. The levelling plates are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Products

Products N levelling range B width L length Pmax maximum load E fitting dimension W Weight per storage unit bookmark
UKENP 160S25 - 70 mm164 mm210 mm2,00 kN170 x 276 mm0,711 kg

Detail and application images

Hover to zoom
