UEP160 UST components are built-in circuit boards from the underfloor system product range. These accessories are bolted into compact single outlets and used to accommodate up to two installation devices with dimensions 45x45 mm. The circuit boards are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products

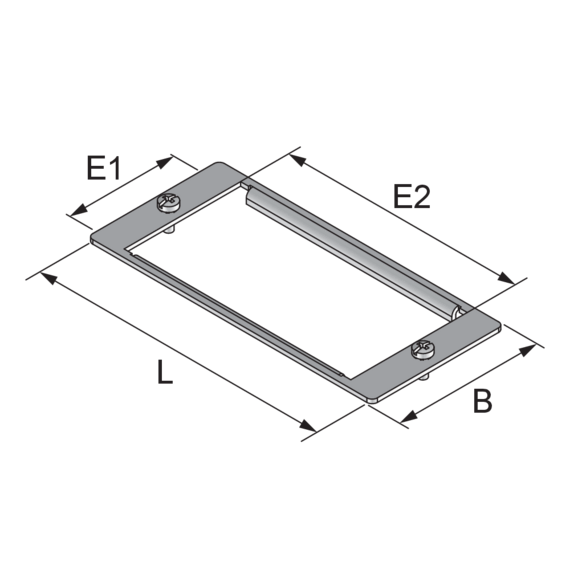

Products | B width | L length | E1 fitting dimension E1 | E2 fitting dimension E2 | colour color | W Weight per storage unit | bookmark |
---|---|---|---|---|---|---|---|
UEP160-UST 2 | 50 mm | 108 mm | 40,5 mm | 86 mm | STAHL | 0,029 kg |
