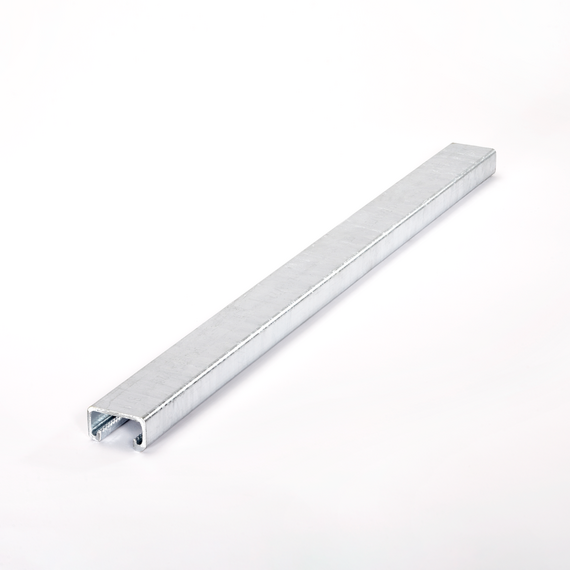

The mounting channel JZM K 41/22 is made of hot-dip galvanised steel (fv), stainless steel (A4) or rolled plain steel (wb). It has a static load-bearing capacity of the normal force (NRd) of 7 kN. The mounting channel is available in the standard length of 6000 mm and is paired with the bolts JZS M12 - JZS M16. The profile is 41 mm wide and 22 mm high.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, bright rolled
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| ZMK4122 R-6000 | 6000 mm | 41 mm | 22 mm | 2,5 mm | 2,387 cm² | 11,244 kg |
steel, batch/hot-dip galvanized
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| ZMK4122 FV-6000 | 6000 mm | 41 mm | 22 mm | 2,5 mm | 2,387 cm² | 12,366 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| ZMK4122 A4-6000 | 6000 mm | 41 mm | 22 mm | 2,5 mm | 2,387 cm² | 11,460 kg |
