The mounting channel JM W 50/30 is approved throughout Europe by ETA-15/0386. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) and rolled plain steel (wb). This mounting channel has a static load-bearing capacity of the normal force (NRd) of 20.6 kN and shear force (VRd) of 20.2 kN. It is available with a total length of 6000 mm and is paired with the bolts JB M10 - JB M20. The profile is 50 mm wide and 30 mm high.
data sheetTender text
You can find the appropriate tender text for this product on these portals:

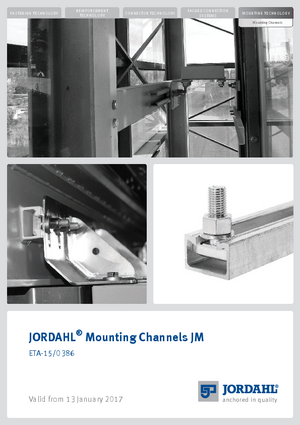

: ETA-15/0386
: EPD-JDL-20200260-IBB1-DE
Approvals and Certificates
Approvals and Certificates
- Approved throughout Europe by ETA-15/0386
- Environmental Product Declaration EPD-JDL-20200260-IBB1-DE
Products
steel, bright rolled
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| JMW5030 R-6000 | 6000 mm | 50 mm | 30 mm | 2,75 mm | 4,204 cm² | 19,800 kg |
steel, batch/hot-dip galvanized
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| JMW5030 FV-6000 | 6000 mm | 50 mm | 30 mm | 2,75 mm | 4,204 cm² | 21,540 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | L length | BP profile width | HP profile height | t Material strength | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| JMW5030 A4-6000 | 6000 mm | 50 mm | 30 mm | 2,75 mm | 4,204 cm² | 20,178 kg |
