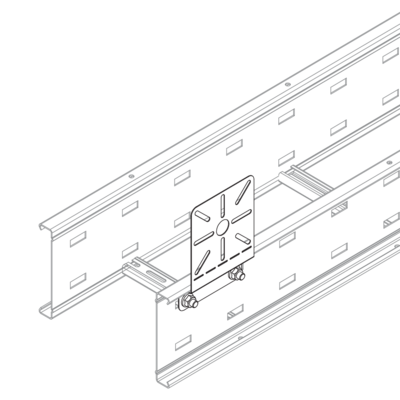

The mounting plate MP-W can be used e.g. to attach junction boxes to wide span cable trays. The plate itself is screwed twice to the side rail of the wide span cable trays using the fastening set supplied. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | t material thickness | MT thread size (metric) | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| MP-W S | 185 mm | 120 mm | 1,00 mm | - | 0,233 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | t material thickness | MT thread size (metric) | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| MP-W F | 185 mm | 120 mm | 1,00 mm | - | 0,251 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | B width | t material thickness | MT thread size (metric) | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| MP-W E | 185 mm | 120 mm | 1,00 mm | 0,238 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | H height | B width | t material thickness | MT thread size (metric) | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| MP-W E4 | 185 mm | 120 mm | 1,00 mm | - | 0,246 kg |
