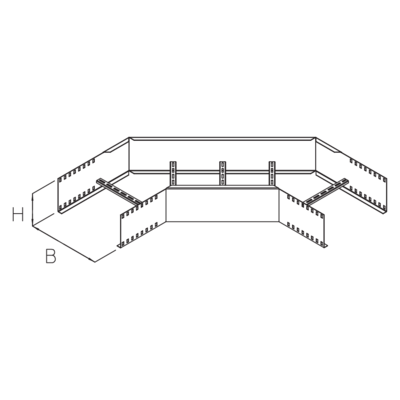

WLB 200 Wide-span cable ladder bend, height = 204 mm

The wide-span floor duct bends WLB 200 with integrated connectors allow the direction of cable routing to be changed horizontally by 90°. They are suitable for WL 200 wide-span cable conductors and are from 200 to 600 mm wide. The bend is pushed into the wide-span cable ladder and then bolted in place. The connecting rack is then assembled to the bend. They are made of hot-dip galvanised steel.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Advantages

Advantages

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Products

steel, batch/hot-dip galvanized
Products H height Height B width L length W Weight per storage unit incl. show all inclusive accessoiresbookmark
WLB 200-20F208 mm208 mm237 mm952 mmhorizontal90°16,590 kg
WLB 200-30F208 mm208 mm337 mm1052 mmhorizontal90°17,820 kg
WLB 200-40F208 mm208 mm437 mm1152 mmhorizontal90°19,070 kg
WLB 200-50F208 mm208 mm537 mm1252 mmhorizontal90°20,310 kg
WLB 200-60F208 mm208 mm637 mm1352 mmhorizontal90°21,540 kg
