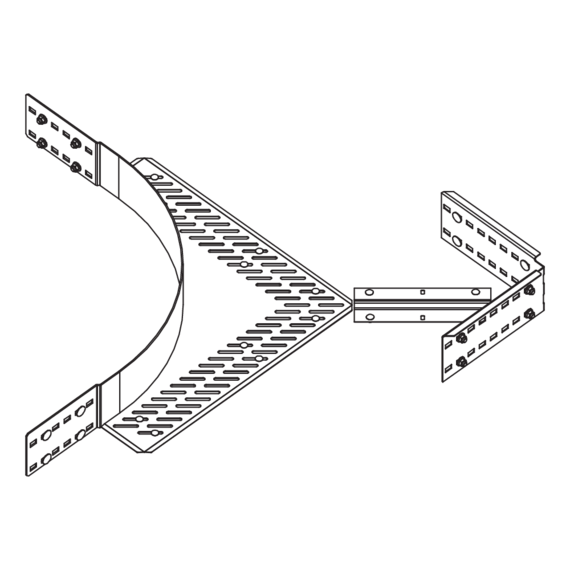

The wide-span cable tray attachment corner piece WPREAB 150 allows the direction of cable routing to be changed horizontally by 90°. It is suitable for wide-span cable trays with rails 150 mm high. As specified in the installation instructions, the WPEA attachment corner element is first mounted on the previously cut cable tray and then the connecting tray is bolted to the corner element piece and corner connector. Finally, a VB-BS connecting plate is added towards the corner. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction by 90°.
- Cable-friendly guide
Products
steel, batch/hot-dip galvanized

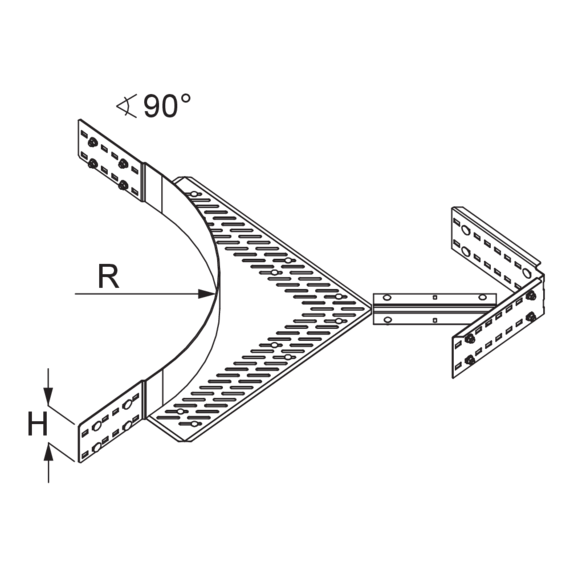

| Products | Height | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|
| WPREAB 150F | 150 mm | 450 mm | 90° | 8,084 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | Height | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|
| WPREAB 150E | 150 mm | 450 mm | 90° | 7,569 kg |
