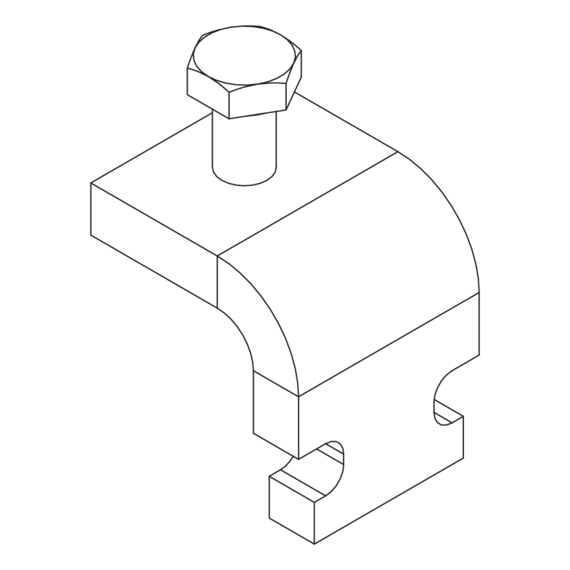

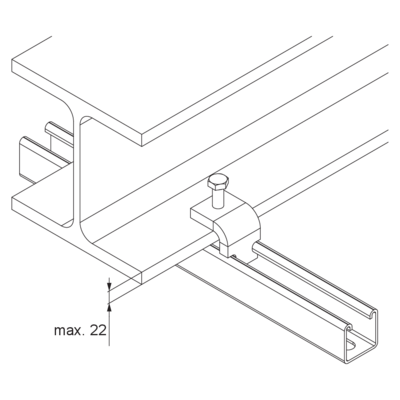

The beam clamp AVSKH is used to attach mounting channels (A 41, KHA 41, KHAL 41, KHA 42, KHA 82) to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 22 mm. It is made of hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

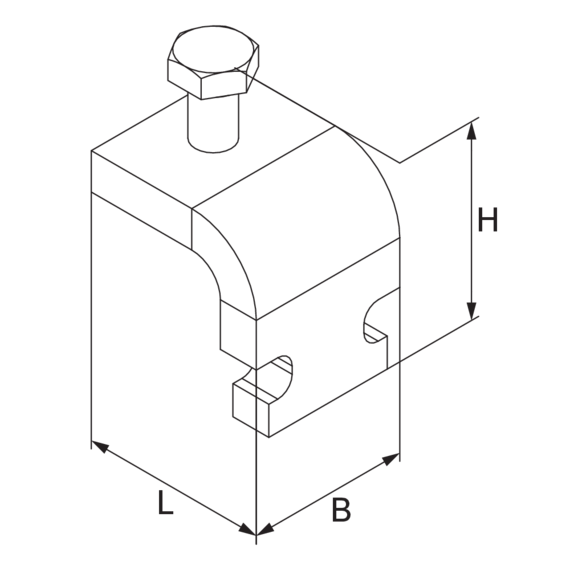

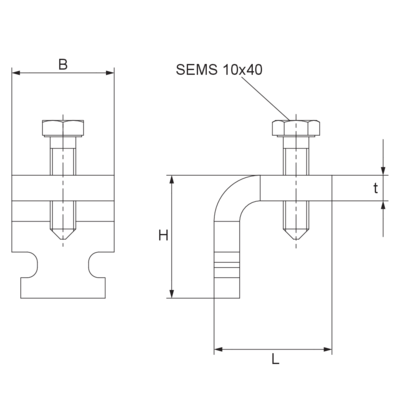

| Products | L length | B width | t material thickness | k clamping range | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|
| AVSKH F | 46 mm | 40 mm | 10 mm | 22 mm | 0,342 kg |
