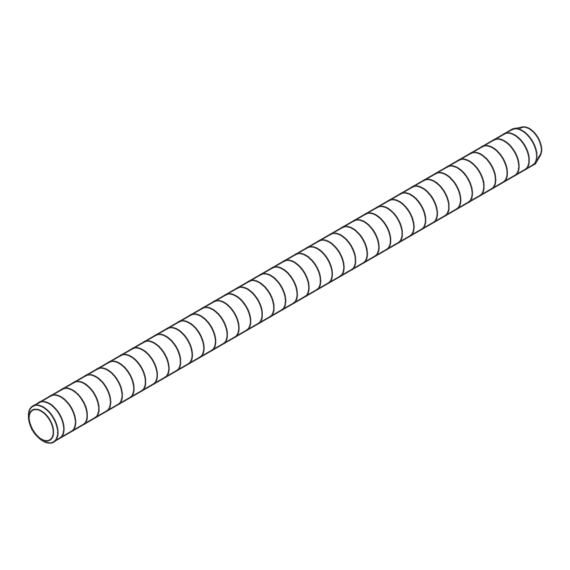

Threaded rods GB are used to attach light pendant suspensions and to fasten standard support structures. They are available in M8, M10 and M12 threads and have a length of 300, 500 or 1000 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. Stress areas according to DIN 267-4: GB M8 = 36.6 mm², GB M10 = 58.0 mm², GB M12 = 84.3 mm².
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, galvanic zinc plated
| Products | L length | Ø thread diameter | W Weight per storage unit | bookmark |
|---|---|---|---|---|
| GB M8-03 | 300 mm | 8 mm | 0,082 kg | |
| GB M8-05 | 500 mm | 8 mm | 0,153 kg | |
| GB M8-10 | 1000 mm | 8 mm | 0,307 kg | |
| GB M10-03 | 300 mm | 10 mm | 0,141 kg | |
| GB M10-05 | 500 mm | 10 mm | 0,243 kg | |
| GB M10-10 | 1000 mm | 10 mm | 0,497 kg | |
| GB M12-03 | 300 mm | 12 mm | 0,217 kg | |
| GB M12-05 | 500 mm | 12 mm | 0,362 kg | |
| GB M12-10 | 1000 mm | 12 mm | 0,725 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | L length | Ø thread diameter | W Weight per storage unit | bookmark |
|---|---|---|---|---|
| GB M8-10E | 1000 mm | 8 mm | 0,309 kg | |
| GB M10-10E | 1000 mm | 10 mm | 0,500 kg | |
| GB M12-10E | 1000 mm | 12 mm | 0,730 kg |
