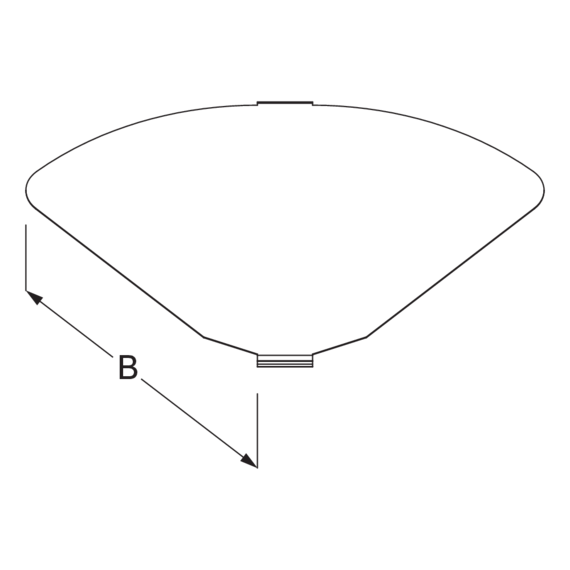

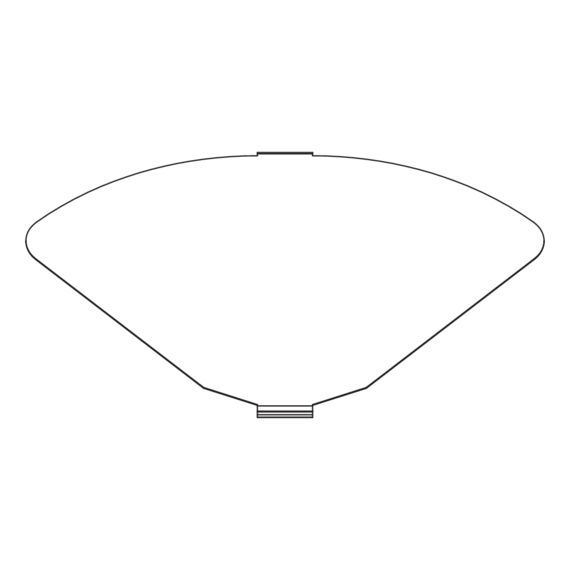

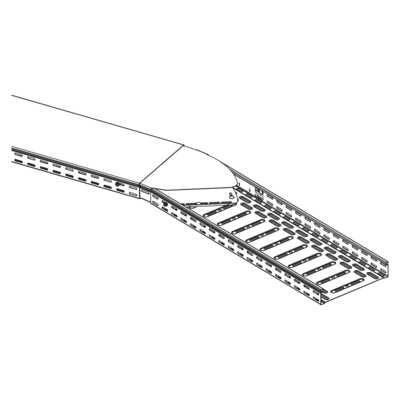

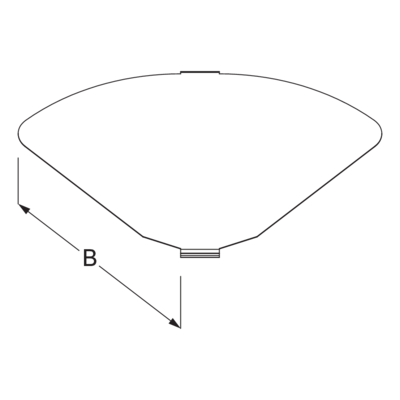

The cable tray bend covers RBVD are suitable for variable RBV cable tray bends and protect them from dirt and moisture. They snap into place and interlock with the side rails. If the covers are to be used outdoors, additional securing brackets to protect against wind are required. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Protects the cable tray bend RBV against external influences
- Easy assembly without additional tools: Snap the cover onto the bend
Products
steel, continously hot galvanized/Sendzimir process
| Products | B width | W Weight per storage unit | bookmark | ||
|---|---|---|---|---|---|
| RBVD 05S | 48 mm | horizontal | var. | 0,051 kg | |
| RBVD 10S | 106 mm | horizontal | var. | 0,128 kg | |
| RBVD 20S | 206 mm | horizontal | var. | 0,375 kg | |
| RBVD 30S | 306 mm | horizontal | var. | 0,746 kg | |
| RBVD 40S | 406 mm | horizontal | var. | 1,241 kg | |
| RBVD 50S | 506 mm | horizontal | var. | 1,860 kg | |
| RBVD 60S | 606 mm | horizontal | var. | 2,602 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | B width | W Weight per storage unit | bookmark | ||
|---|---|---|---|---|---|
| RBVD 05E | 48 mm | horizontal | var. | 0,052 kg | |
| RBVD 10E | 106 mm | horizontal | var. | 0,130 kg | |
| RBVD 20E | 206 mm | horizontal | var. | 0,382 kg | |
| RBVD 30E | 306 mm | horizontal | var. | 0,760 kg | |
| RBVD 40E | 406 mm | horizontal | var. | 1,265 kg | |
| RBVD 50E | 506 mm | horizontal | var. | 1,896 kg | |
| RBVD 60E | 606 mm | horizontal | var. | 2,652 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | B width | W Weight per storage unit | bookmark | ||
|---|---|---|---|---|---|
| RBVD 05E4 | 48 mm | horizontal | var. | 0,052 kg | |
| RBVD 10E4 | 106 mm | horizontal | var. | 0,130 kg | |
| RBVD 20E4 | 206 mm | horizontal | var. | 0,382 kg | |
| RBVD 30E4 | 306 mm | horizontal | var. | 0,760 kg | |
| RBVD 40E4 | 406 mm | horizontal | var. | 1,265 kg | |
| RBVD 50E4 | 506 mm | horizontal | var. | 1,896 kg | |
| RBVD 60E4 | 606 mm | horizontal | var. | 2,652 kg |
