The multiple cable holder SHK ND K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on ceilings. It is 45 to 58 mm high making it suitable for applications with limited installation height. SHK 10 and 20 are one-sided multiple cable holders. SHK 40 is a two-sided multiple cable holder. A nail anchor is included. The fixing element is made of halogen-free and silicone-free polyamide and is (excluding the dowels) flame-retardant up to 750°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The multiple cable holder holds 10 to 40 cables. This information relates to NYM cable (3x1.5 mm²).
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide

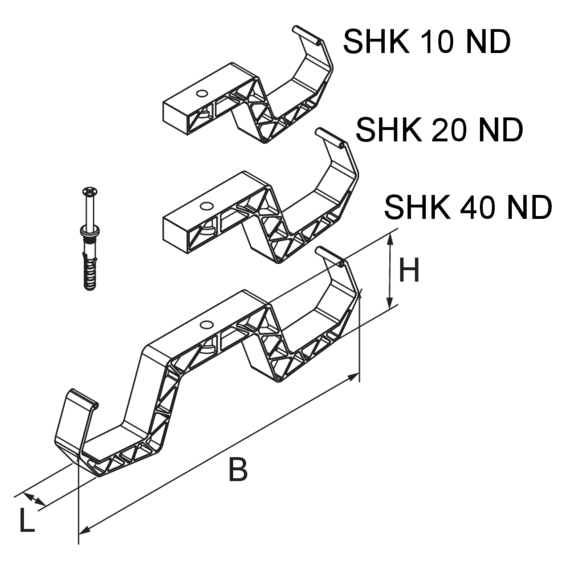

| Products | H height | B width | L length | cables max. number of cables | Tmax Test temperature | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|---|---|---|
| SHK 10 ND K | 45 mm | 112 mm | 19 mm | RAL 7035 | 10 | 750 °C | 0,032 kg | ||
| SHK 20 ND K | 58 mm | 128 mm | 19 mm | RAL 7035 | 20 | 750 °C | 0,036 kg | ||
| SHK 40 ND K | 58 mm | 216 mm | 19 mm | RAL 7035 | 40 | 750 °C | 0,054 kg |
