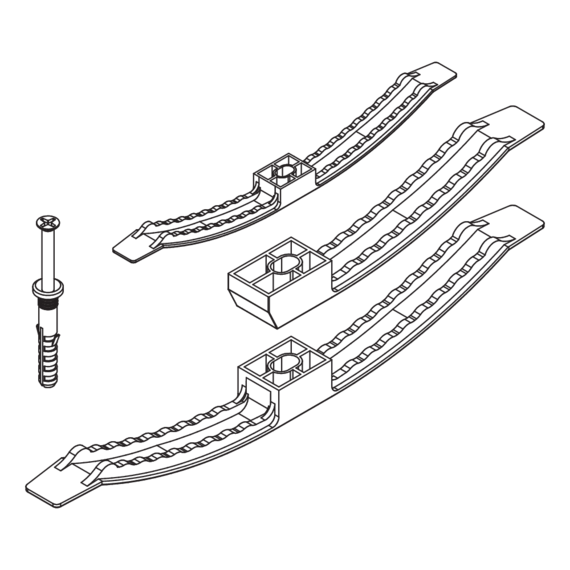

The cable clip LK ND K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on ceilings. It is 16 mm high making it suitable for applications with low installation heights. A nail anchor is included. The cable clamp is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The cable clamp holds 8 to 16 cables. This information relates to NYM cable (3x1.5 mm²).
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide

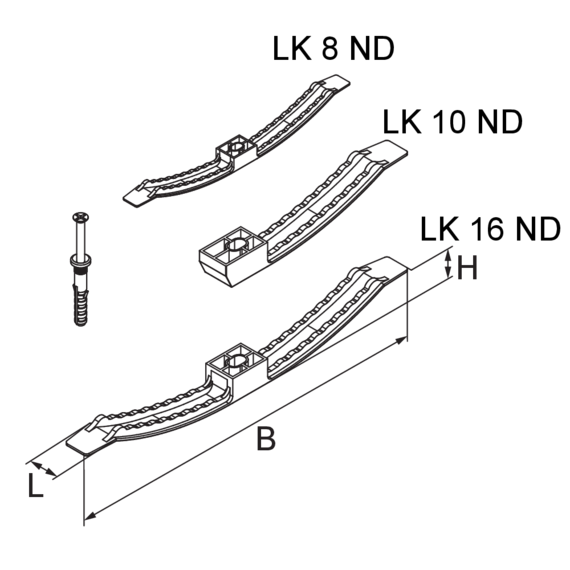

| Products | H height | B width | L length | cables max. number of cables | Tmax Test temperature | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|---|---|---|
| LK 10 ND FWK | 15 mm | 126 mm | 19 mm | RAL 7030 | 10 | 960 °C | 0,018 kg | ||
| LK 10 ND K | 15 mm | 126 mm | 19 mm | RAL 7035 | 10 | 750 °C | 0,017 kg | ||
| LK 16 ND FWK | 15 mm | 226 mm | 19 mm | RAL 7030 | 16 | 960 °C | 0,027 kg | ||
| LK 16 ND K | 15 mm | 226 mm | 19 mm | RAL 7035 | 16 | 750 °C | 0,026 kg | ||
| LK 8 ND FWK | 14 mm | 152 mm | 19 mm | RAL 7030 | 8 | 960 °C | 0,022 kg | ||
| LK 8 ND K | 14 mm | 152 mm | 19 mm | RAL 7035 | 8 | 750 °C | 0,019 kg |
