UEBSST levelling support

Accessories
Downloads

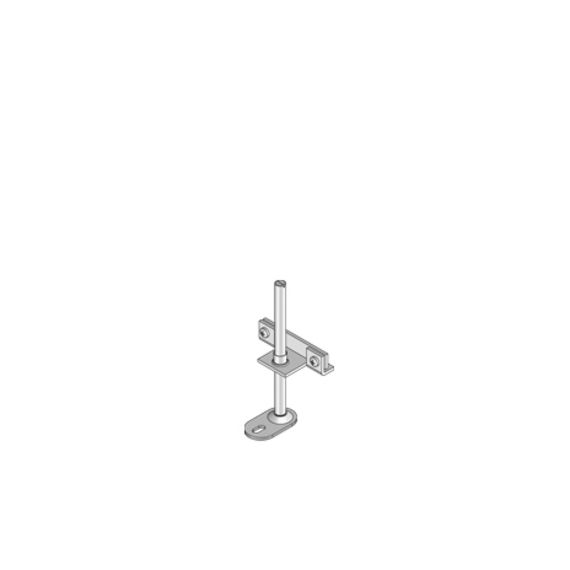

Levelling support for screed-flush duct made of sendzimir hot-dip galvanised steel for height adjustment.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	H_minMinimum installation height	N levelling range	weight
UEBSST 80S	60 mm	50 mm	0,17 kg
UEBSST 150S	100 mm	50 mm	0,18 kg
UEBSST 220S	140 mm	100 mm	0,19 kg

Accessories

UGM SLF

subsonic noise sleeve socket - levelling support

Downloads

Underfloor systems
PDF | 52 MB

Screed flush duct systems
PDF | 4 MB

Test certificate for VDE testing according to DIN EN 50085, UEBS, screed-flush trunking system
PDF | 605 KB
