Attachment assembly cover set, triple, made of sheet steel, pre-assembled on aluminum side profile with bolted traverse, pre-punched dummy assembly opening and end piece. Designed for office traffic loads.
data sheet
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

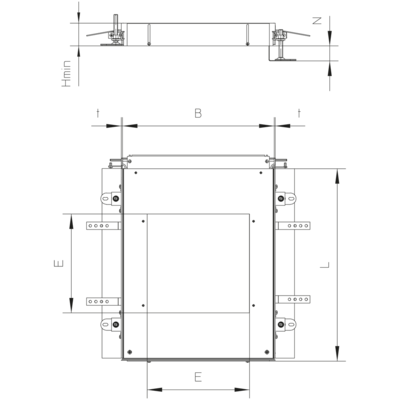

| HminMinimum installation height | N levelling range | width | length | E fitting dimension | t material thickness | weight | |||
|---|---|---|---|---|---|---|---|---|---|
| UEBSAM60-260V 40S | 60 mm | 50 mm | 400 mm | 500 mm | 261 x 261 mm | 3,00 mm | 9,10 kg |
Underfloor systems
Screed flush duct systems
