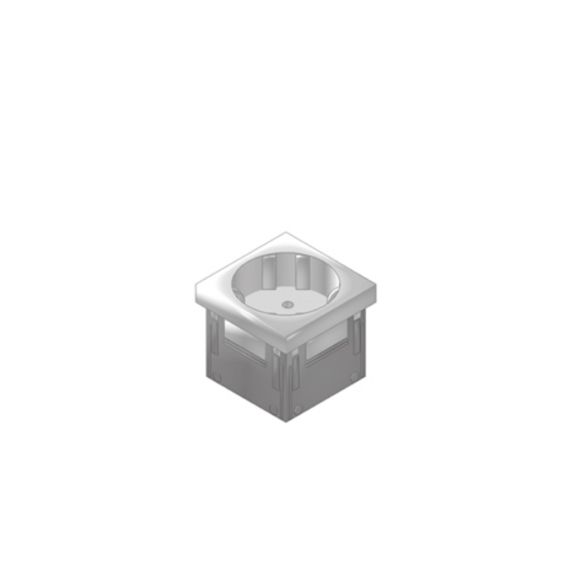

One-piece latchable single isolated ground receptacle, 45x45 mm design made of plastic with 33° or 0° plugging angle, push terminals, increased contact protection according to VDE 0620 and nominal voltage/- current: AC 250 V, 10/16 A.
data sheet Assembly Instruction
Polycarbonate

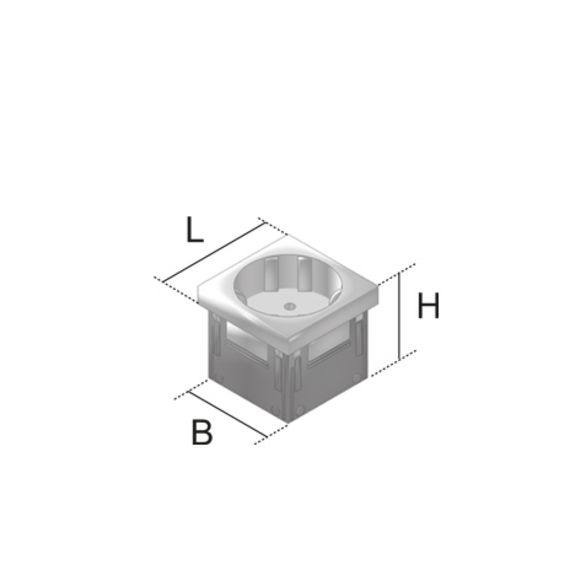

| height | width | length | color | plug angle | weight | ||
|---|---|---|---|---|---|---|---|
| UST45-W 1 | 42 mm | 40 mm | 45 mm | white (similar to RAL 9010) | 33 ° | 0,04 kg | |
| UST45-R 1 | 42 mm | 40 mm | 45 mm | red (similar to RAL 3003) | 33 ° | 0,04 kg | |
| UST45-O 1 | 42 mm | 40 mm | 45 mm | orange (similar to RAL 2004) | 33 ° | 0,04 kg | |
| UST45-G 1 | 42 mm | 40 mm | 45 mm | green (similar to RAL 6029) | 33 ° | 0,04 kg | |
| UST45-W 01 | 42 mm | 40 mm | 45 mm | white (similar to RAL 9010) | - | 0,04 kg | |
| UST45-R 01 | 42 mm | 40 mm | 45 mm | red (similar to RAL 3003) | - | 0,04 kg | |
| UST45-O 01 | 42 mm | 40 mm | 45 mm | orange (similar to RAL 2004) | - | 0,04 kg | |
| UST45-G 01 | 42 mm | 40 mm | 45 mm | green (similar to RAL 6029) | - | 0,04 kg | |
| UST45-S 01 | 42 mm | 40 mm | 45 mm | Black (similar to RAL 7021) | - | 0,04 kg |
