The WLRK 200 wide span cable tray crossing with integrated connectors serves as a molded part for horizontally crossing wide span cable trays. It is suitable for WLR 200 wide span cable trays and has widths from 200 to 600 mm. The cable trays can be inserted with a VB floor connector. Various materials and surfaces ensure that the corrosion protection requirements of a wide range of applications are met.
- Allows horizontal change of cable routing in four directions
- Gentle cable guidance
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

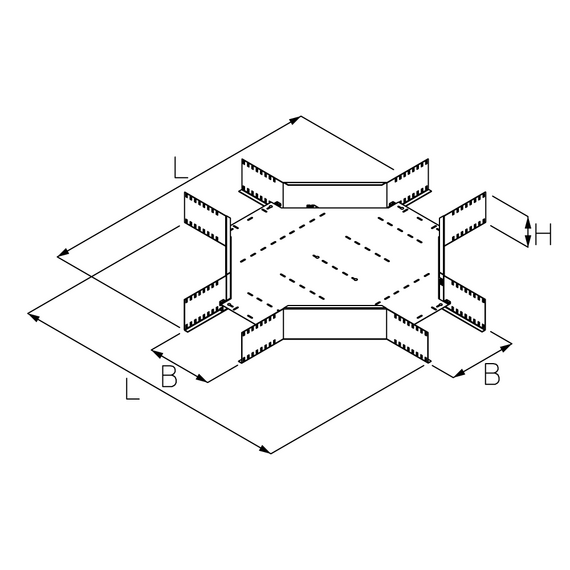

| height | width | length | weight | |||
|---|---|---|---|---|---|---|
| WLRK 200-20F | 208 mm | 237 mm | 1667 mm | 39,11 kg | ||
| WLRK 200-30F | 208 mm | 337 mm | 1767 mm | 41,60 kg | ||
| WLRK 200-40F | 208 mm | 437 mm | 1867 mm | 44,17 kg | ||
| WLRK 200-50F | 208 mm | 537 mm | 1967 mm | 48,67 kg | ||
| WLRK 200-60F | 208 mm | 637 mm | 2067 mm | 51,63 kg |
