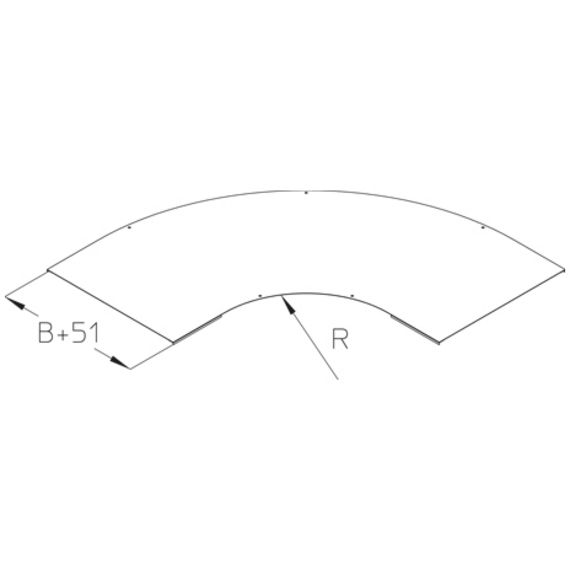

Cover for wide-span bend.
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
data sheet
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | radius | weight | ||
|---|---|---|---|---|
| WPBD 20S | 200 mm | 450 mm | 2,09 kg | |
| WPBD 30S | 300 mm | 450 mm | 4,07 kg | |
| WPBD 40S | 400 mm | 450 mm | 5,5 kg | |
| WPBD 50S | 500 mm | 450 mm | 8,79 kg | |
| WPBD 60S | 600 mm | 450 mm | 10,86 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | radius | weight | ||
|---|---|---|---|---|
| WPBD 20F | 200 mm | 450 mm | 2,24 kg | |
| WPBD 30F | 300 mm | 450 mm | 4,36 kg | |
| WPBD 40F | 400 mm | 450 mm | 5,88 kg | |
| WPBD 50F | 500 mm | 450 mm | 9,4 kg | |
| WPBD 60F | 600 mm | 450 mm | 11,62 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | radius | weight | ||
|---|---|---|---|---|
| WPBD 20E | 200 mm | 450 mm | 2,09 kg | |
| WPBD 30E | 300 mm | 450 mm | 4,07 kg | |
| WPBD 40E | 400 mm | 450 mm | 5,5 kg | |
| WPBD 50E | 500 mm | 450 mm | 8,79 kg | |
| WPBD 60E | 600 mm | 450 mm | 10,86 kg |
