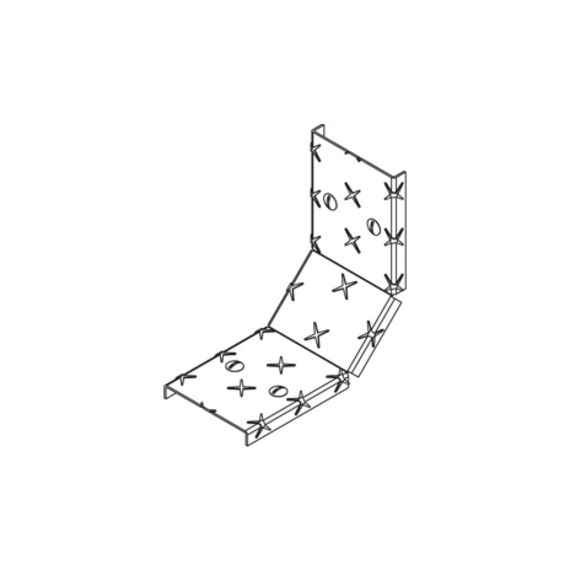

Cover with non-slip embossing and turning bolts for floor duct riser bend.
The cover consists of a 2 mm thick galvanized sheet steel with 1 mm non-slip embossing and slip resistance R12 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
data sheet
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | width | length | t material thickness | PmaxMaximum load | slip resistance class slip resistance according to DIN 51130 | weight | ||
|---|---|---|---|---|---|---|---|---|
| BKSDR-RHP 10S | 200 mm | 100 mm | 200 mm | 2,00 mm | 5 kN | R12 | 0,76 kg | |
| BKSDR-RHP 15S | 200 mm | 150 mm | 200 mm | 2,00 mm | 5 kN | R12 | 1,02 kg | |
| BKSDR-RHP 20S | 200 mm | 200 mm | 200 mm | 2,00 mm | 5 kN | R12 | 1,29 kg | |
| BKSDR-RHP 30S | 200 mm | 300 mm | 200 mm | 2,00 mm | 5 kN | R12 | 1,82 kg | |
| BKSDR-RHP 40S | 200 mm | 400 mm | 200 mm | 2,00 mm | 5 kN | R12 | 2,35 kg | |
| BKSDR-RHP 50S | 200 mm | 500 mm | 200 mm | 2,00 mm | 5 kN | R12 | 2,88 kg | |
| BKSDR-RHP 60S | 200 mm | 600 mm | 200 mm | 2,00 mm | 5 kN | R12 | 3,41 kg |
