Support for the floor duct bracket.
From a length of 392 mm BKHR the use of BKHRU is recommended. The support does not need to be screwed to the floor. No dowels have to be placed.
data sheet
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

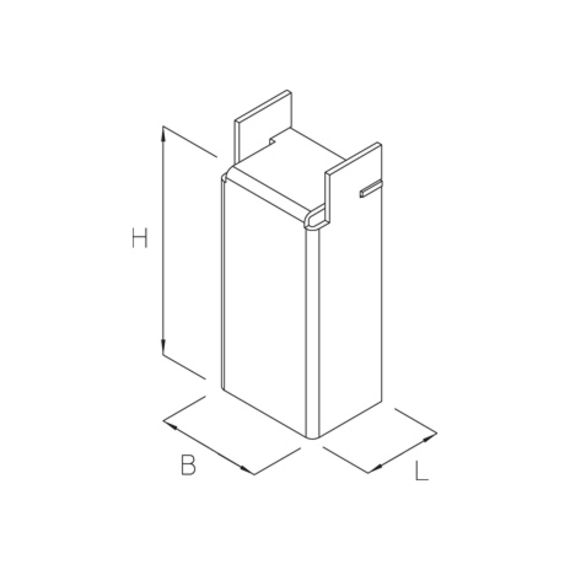

| height | width | length | t material thickness | weight | ||
|---|---|---|---|---|---|---|
| BKHRU S | 88 mm | 39,5 mm | 32 mm | 2 mm | 0,17 kg |
