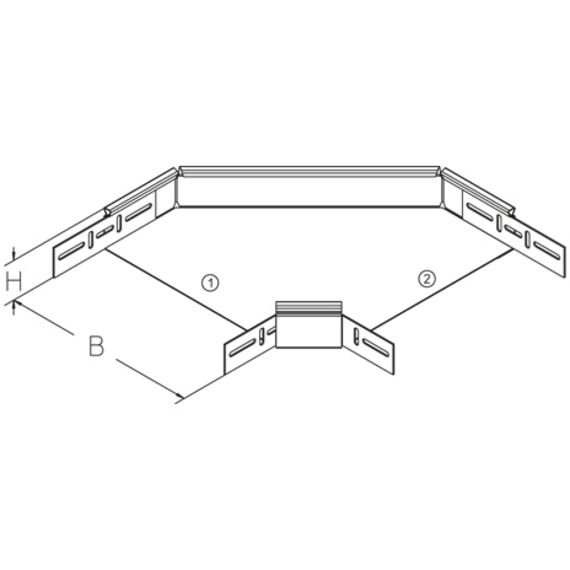

RIB 60 cable installation tray bend, height = 60 mm

cable tray bend 90º for horizontal change of direction with integrated connectors

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	weight
RIB 60-05S	60 mm	50 mm	0,56 kg
RIB 60-10S	60 mm	100 mm	0,73 kg
RIB 60-20S	60 mm	200 mm	1,18 kg
RIB 60-30S	60 mm	300 mm	1,86 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	weight
RIB 60-05F	60 mm	50 mm	0,56 kg
RIB 60-10F	60 mm	100 mm	0,78 kg
RIB 60-20F	60 mm	200 mm	1,27 kg
RIB 60-30F	60 mm	300 mm	2,00 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	weight
RIB 60-05E	60 mm	50 mm	0,45 kg
RIB 60-10E	60 mm	100 mm	0,86 kg
RIB 60-20E	60 mm	200 mm	1,31 kg
RIB 60-30E	60 mm	300 mm	1,98 kg

Details / Applications

Accessories

RBD

cable tray bend cover

RIBDS

cable installation tray bend cover, heavy

connection plate

RTRV 60

Rinnentrennsteg, variabel, Höhe = 50 mm
